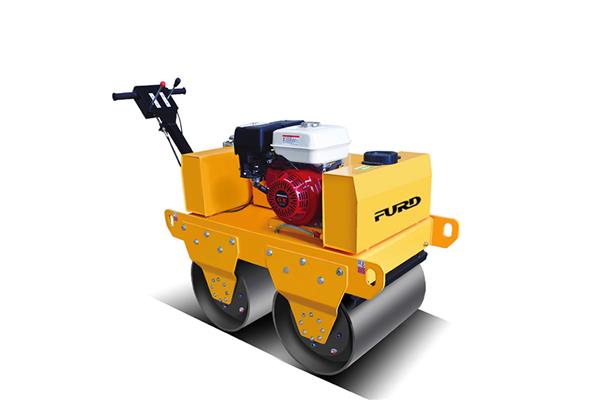

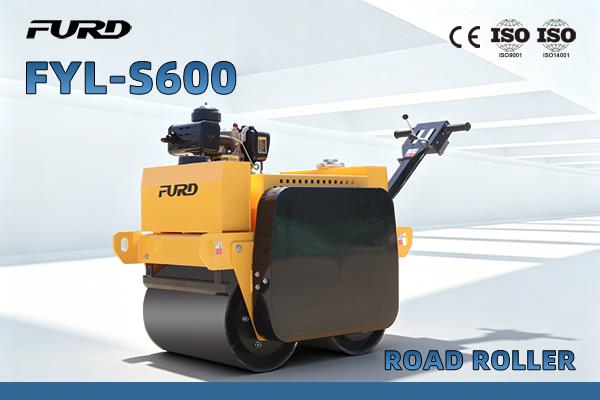

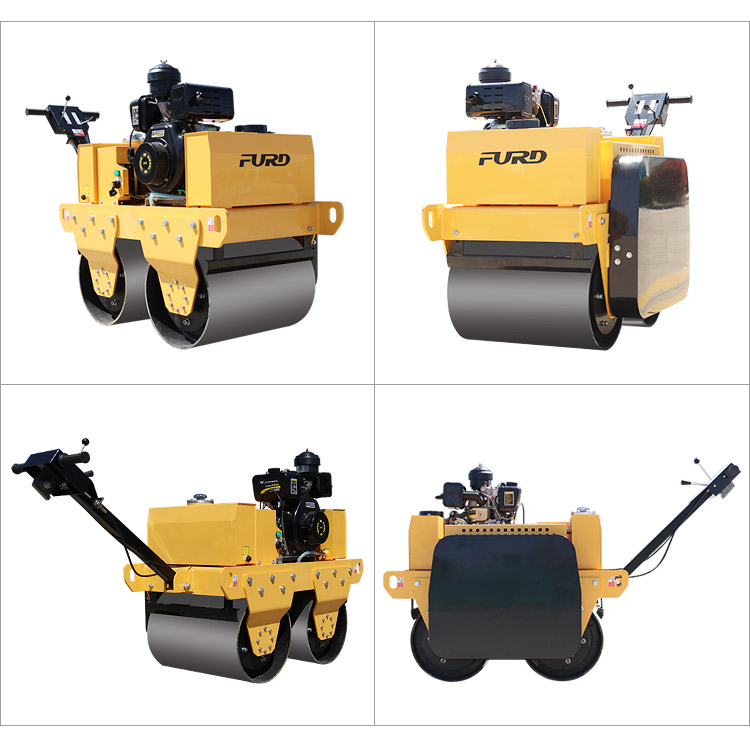

Mainly used in foundation ditch, road, sports venues built compaction, can also be used to compact asphalt surface.
Application:
Mainly used in foundation ditch, road, sports venues built compaction, can also be used to compact asphalt surface.
Features:
1. With Honda gasoline engine or famous diesel engine, superior performance, easy to start;
2. Operating radius is small, can work in small area;
3. The transmission mechanism of famous hydraulic drive system, and infinitely variable speed, reversing is convenient, long lifetime;
4. Diesel power with electric startup, light and flexible;
5. Double drum driving and vibration, ensure the compaction performance of the whole machine and gradeability.

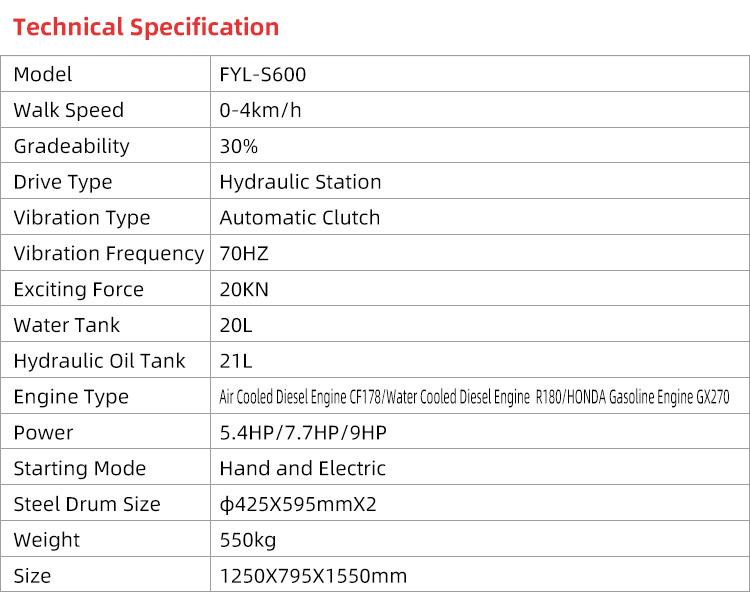

Technical Parameters:
Model |
FYL-S600 |
FYL-S600C |
Walk Speed |
0-4km/h |
|
Gradeability |
30% |
|
Drive Type |
Hydraulic Station |
|
Vibration Control |
Automatic Clutch |
Automatic Clutch |
Static Linear Load |
53N/cm |
|
Nominal Amplitude |
0.5mm |
|
Vibration Frequency |
70HZ |
|
Exciting Force |
20KN |
|
Water Tank |
20L |
|
Hydraulic Oil Tank |
21L |
|
Engine Model |
HONDA GX270 |
CF178F |
Power |
9.0HP |
6.0HP |
Steel Wheel Size |
φ425X600mmX2 |
|
Package Size |
1450X1100X1200mm |
|
Working Weight |
550kg |
|
Starting Mode |
Hand |
Hand/Electric |
