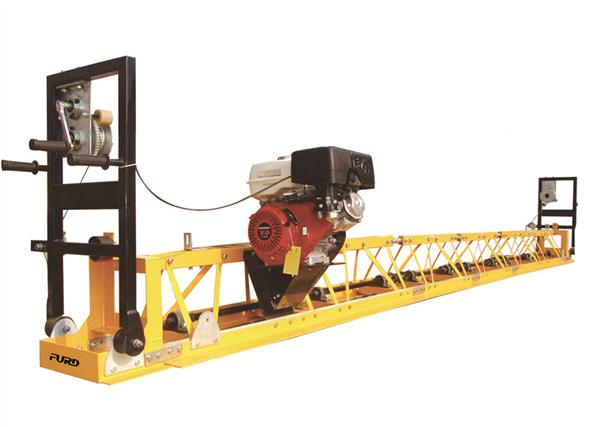

FZP Concrete Truss Screed

Using for concrete road(land/bridge) surface life pulp, vibrated, leveling. It is new equipment for roads, square and modern factory building. And it is a traditional paver upgrading products. Can choose gasoline engine or electric motor.

Please call:
+86-537-2269799

Application:

Using for concrete road(land/bridge) surface life pulp, vibrated, leveling. It is new equipment for roads, square and modern factory building. And it is a traditional paver upgrading products. Can choose gasoline engine or electric motor.


Features:

1. Honda power (or famous electric motor), famous brand, quality assurance superior performance, easy to start;

2. Truss screeds baseplate select cold rolled sheet, wear and corrosion resistance;

3. The overall frame adopts full steel structures, shock resistant, won't be hard deformation;

4. Removable and free combination design, greatly reduced the maintenance and transporation cost;

5. The whole meyers can fast joint together, reduce the cost.


Technical Parameters:

Model

FZP-55

 FZP-90

FZP-130

Engine Model

HONDA GX160

HONDA GX270

HONDA GX390

Power

5.5HP/4.0kw

9HP/5.5kw

13.0HP/7.5kw

Engine Type

Gasoline engine, air-cooled 4-stroke, OHV, single cylinder

Working Width

4m-7m

8m-11m

12m-16m

Working Depth

260cm

260cm

260cm

Vibration Frequency

70Hz

70Hz

70Hz

Standard Section

1000/2000mm

1000/2000mm

1000/2000mm
