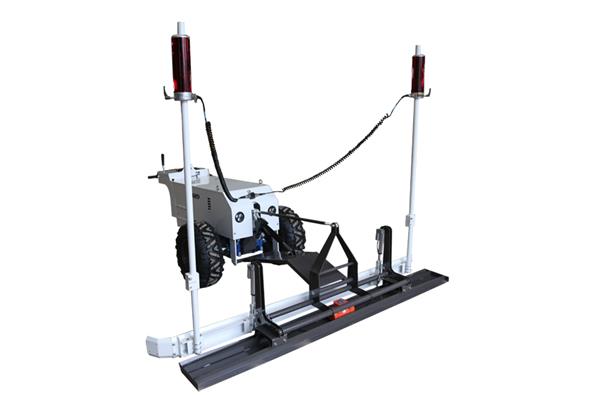

Mainly used in large area concrete construction, such as large workshop, airport, the plaza and so on.
Application:
Mainly used in large area concrete construction, such as large workshop, airport, the plaza and so on.
Features:
1. Adopts imported laser transmitter and receiver.
2. Hydraulic drive, strong power.
3. Electric control screed head.
4. Adopts Honda gasoline engine with electric start.
5. Two kinds of tyres optional.
6. Integrated computer controller, easy to operate.
Technical Parameter:
Model
FDJP-24
Engine
Engine Model
Honda GX390, Electric Start
Type
4 Stoke, Single Cylinder, Gasoline Engine
Power
13HP/3600rpm
Lubricant Volume
1.12L
Fuel Consumption
313g/kwh
Travel
Drive
Hydraulic Motor
Wheel
Beach Tire
Travel Speed
0-50m/min
Working Speed
5m/min
Screed Head
Type
Self-leveling
Screed Width
2500mm
Exciting Force
500N
Vibration Frequency
50Hz
Screed Plate Level Control
Electric Automatic Control
Laser Control System
Control Type
Microcomputer Laser Scanning
Operation Mode
Walk-behind
Forward/Backward
Switch Control, CVT
Steering
Hydraulic Control
Fuel Volume
6.5L
Hydraulic Oil Volume
11L
Dimension and Weight
Dimension
3000*2700*2050mm(L*W*H)
Weight
380kg
