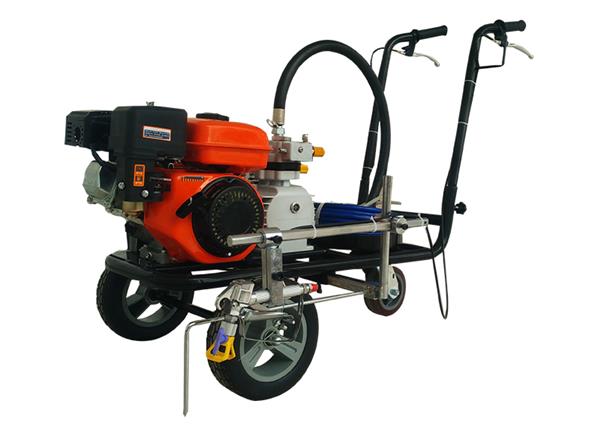

FHX-26 Road Marking Machine

High pressure road line marking machine road paint machine (FHX-26) The Road Line Marking Machine is suitable for marking lines on the plastic running tracks or artificial lawns. 1.Airless spraying paining technology for which the high-pressure pump is drivenby a gasoline engine as been adopted in the line marking machine to create clear,smooth, saturating and even limes, providing a high working efficiency; 2.Both sides of the spraying gun are equipped with a limiting disc plates, ensuringthe line free of raw edges, such plates may be lift through a pulling line insteering, turning flexibly; 3.The spraying gun may be conveniently dismantle different nozzles and control theline width, suitable for common airless spraying for marking or labels; 4. Road line marking machine runs by pushin

Please call:
+86-537-2269799

Technical parameter

Model

FHX-26

Marking width

10 ~ 450mm (adjustable)

Spraying thickness

0.2 ~ 0.4mm

Paint pump maximum flow

8L/min

Max output pressure

250Bar

Nozzle standard configuration

 0.019"

Max. Nozzle Size

0.025"

High pressure pipe length

15m
